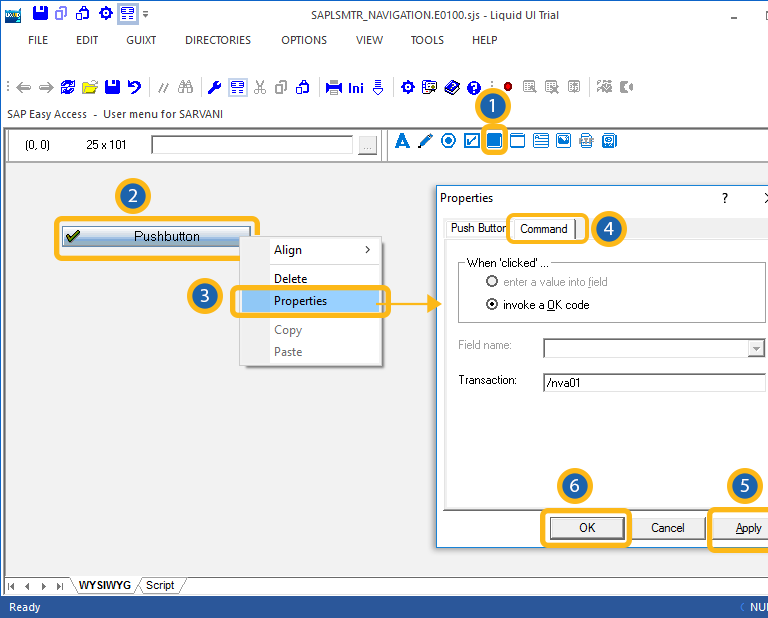

The properties dialog for the Pushbutton element contains two tabs, as follows:
You can modify the properties for the pushbutton element from this dialog box. The tabs are more fully explained below.
Pushbutton

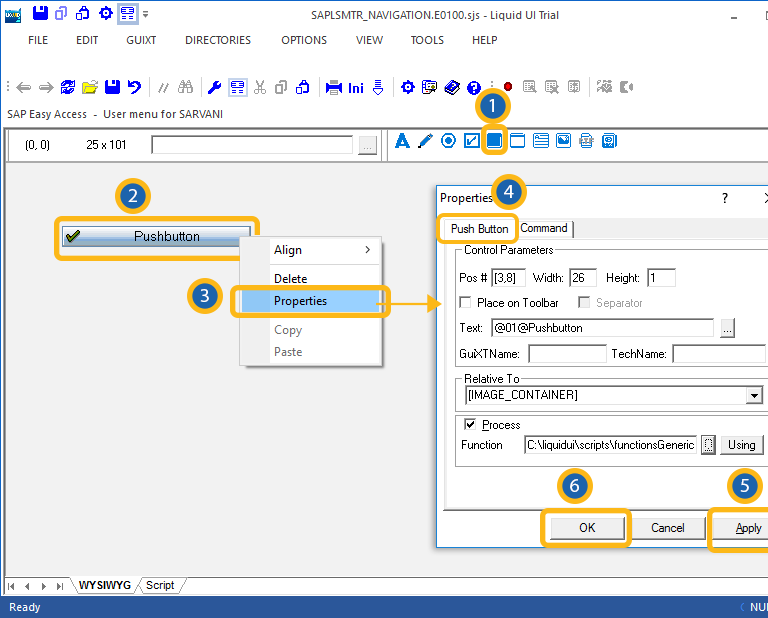

The Pushbutton tab appears as shown below.
The available parameters are as follows.
- Pos
-
Specifies the pushbutton's onscreen coordinates. This is a read-only field - it is not user-modifiable.
- Width
-
Specifies the pushbutton's width in pixels. This is also a read-only field.
- Height
-
Specifies the pushbutton's height in pixels. It is a read-only field.
- Place on Toolbar
-
Places the pushbutton on toolbar.
