Liquid UI - Documentation - 6.04 Customizing the Create Material screen

6.04 Customizing the Create Material screen


In this scenario, you will learn how to customize the MM01 screen with the required fields to create a material. You will see the simplified screen after adding various screen elements in to single screen. Follow below steps to customize create material screen:

  1. Navigate to Create Material screen(MM01) and then activate Liquid UI Inplace Edit.

  2. Select the fields to delete on the MM01 transaction and then Right Click on it to delete.

  3. Select Industry Sector and Material Type fields and drag them to the required position as shown below:

  4. Right Click on the SAP screen to create a groupbox(Organizational data).

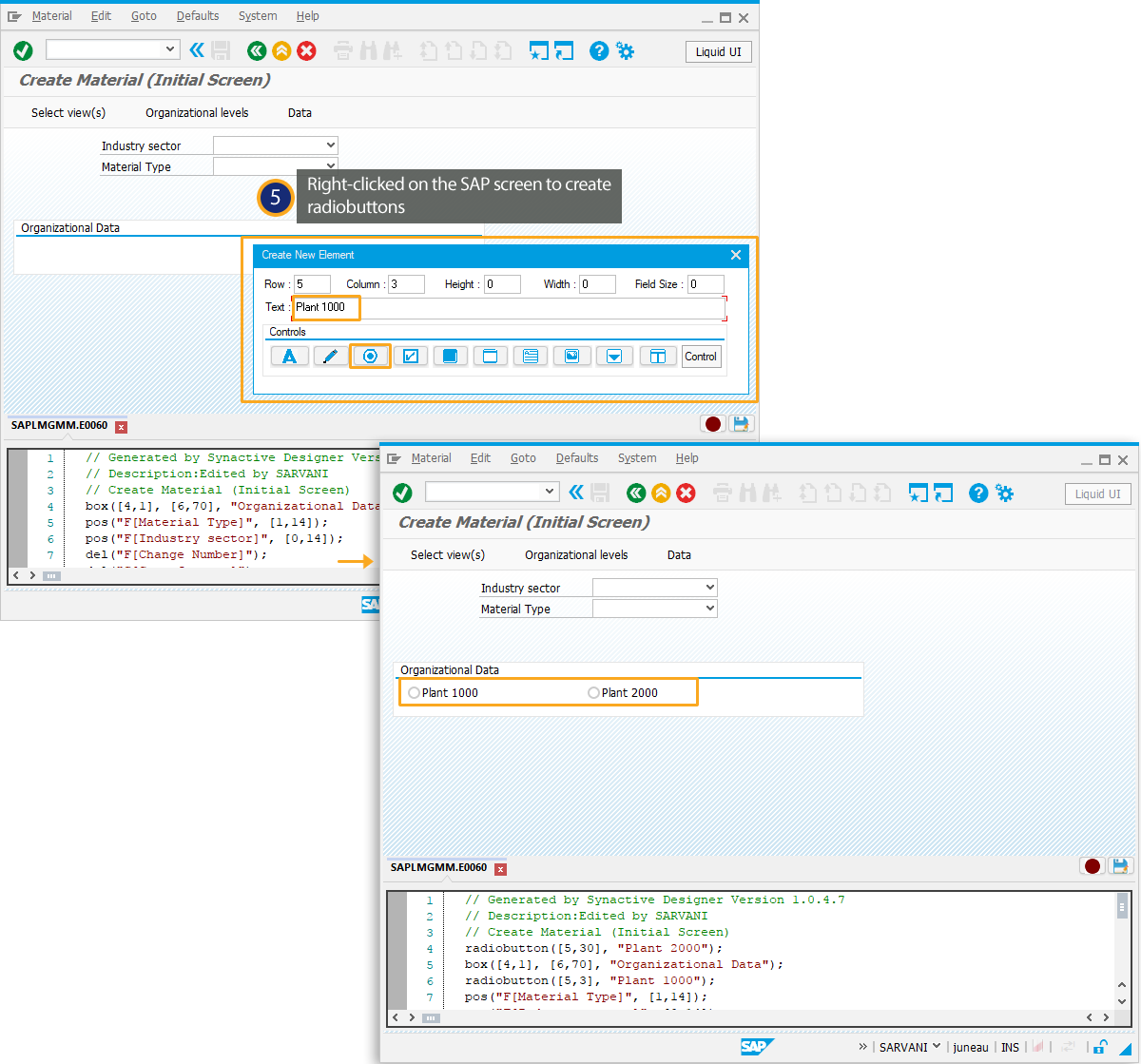

  5. Right Click on the groupbox to create a new Plant 1000 radiobutton. Similarly, you can create a new Plant 2000 radiobutton as shown below.

  6. Double Click on the Plant 1000 radiobutton to edit its property window

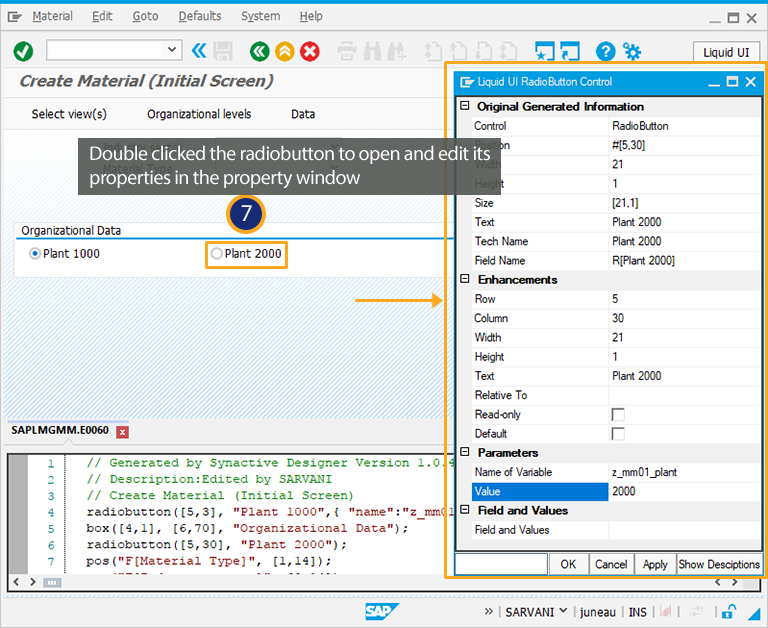

  7. Double Click on the Plant 2000 radiobutton to edit its property window.

  8. Right Click on the SAP screen to create a new groupbox(Basic Data).

  9. Right Click on Basic Data groupbox to create a new textfield(Mat Desc.).

  10. Right Click on Basic Data groupbox to create a new inputfield.

  11. Double Click on the inputfield to edit its property window.

  12. Right Click on the SAP screen to create a new groupbox(MRP).

  13. Right Click on the SAP screen to create a new textfield(MRP Type).

  14. Right Click on the SAP screen to create a new inputfield. Double Click on the inputfield to edit its properties in the property window.

  15. Right Click on the SAP screen to create a new checkbox(Bulk Material). Double Click on Bulk Material to checkbox to edit its properties.

  16. Right Click on the SAP screen to create a Create Material pushbutton as shown below:

  17. Deactivate Inplace Edit and thus you can view the customized MM01 transaction as shown below.
