Liquid UI - Documentation - 9.02 Convert date to required format

9.02 Convert date to required format


Prerequisites


Purpose

You will learn how to convert the entered date format into the selected date format. We will walk you through the following steps:

  1. Delete unnecessary screen elements
  2. Add an inputfield
  3. Add two texts
  4. Add two dropdownlists with values
  5. Add a pushbutton
  6. Add a function to trim blank spaces in a string
  7. Add a function to check string value is blank
  8. Add a function to change the date format
  9. Add a function to validate the date format
  10. Display the formatted date

//Create this file inside your script folder for customizing SAP Easy Access screen: SAPLSMTR_NAVIGATION.E0100.sjs
//Now let's start adding the content to the above file

  1. Delete the screen elements on the SAP Easy Access screen.
    clearscreen();




  2. Add an inputfield as a mandatory field to enter the date.
    //Creates an input field with Enter Date as label, z_date as technical name
    inputfield([1,1], "Enter Date", [1,22], {"name":"z_date", "required":true, "size":10});




  3. Add texts to name the dropdownlist.
    // Creates text as Select Current Format
    text([2,1], "Select Current Format");
    // Creates text as Select New Format
    text([3,1], "Select New Format");




  4. Add two dropdownlists with predefined date formats as shown below.
    set("V[Current Format]", "=;1=1 DD.MM.YYYY;2=2 MM/DD/YYYY;3=3 MM-DD-YYYY;4=4 YYYY.MM.DD;5=5 YYYY/MM/DD;6=6 YYYY-MM-DD;");
    dropdownlist([2,22], "Current Format", {"refer":"z_currdtformat", "width":15, "textfont":"verdana", "textheight":13, "textweight":4});
    set("V[New Format]", "=;1=1 DD.MM.YYYY;2=2 MM/DD/YYYY;3=3 MM-DD-YYYY;4=4 YYYY.MM.DD;5=5 YYYY/MM/DD;6=6 YYYY-MM-DD;"); dropdownlist([3,22], "New Format", {"refer":"z_newdtformat", "width":15, "textfont":"verdana", "textheight":13, "textweight":4});



  5. Add a pushbutton to execute changeDateFormat process on click.
    //Creates a pushbutton with a label as Change Date to New Format
    pushbutton([5,1], "@01@Change Date to New Format", "?", {"process":changeDateFormat});




  6. Add a function to trim the blank spaces in string values.
    // Function to trim blank spaces at the end of the string
    String.prototype.trim=function(){return this.replace(/^\s+|\s+$/g,'');}



  7. Add a function to check the string value is blank and return the
    // Function to check if the string value is blank
    function isBlank(jvar){
       if(typeof jvar == 'string') {
          jvar = jvar.trim();
       }
       if(typeof jvar == 'undefined') {
          jvar = '';
       }
       return(jvar == 'undefined' || jvar == undefined || jvar == null || jvar == "" || jvar == void 0);
    }



  8. Add a function to check the date format entered in the inputfield.
    // Function to validate the date format
    function check_date_format(date,dformat){
        date = date.toString();
        arValues = [];
        arTmpValues = [];
        switch (parseInt(dformat)){
            case 1:
                var matches = /^([0]?[1-9]|[12][0-9]|3[01])\.([0]?[1-9]|1[012])\.[0-9]{4}/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split(".");
                    return (arTmpValues);
                }
                break;
            case 2:
                var matches = /^([0]?[1-9]|1[012])\/([0]?[1-9]|[12][0-9]|3[01])\/[0-9]{4}/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split("/");
                    return ([arTmpValues[1],arTmpValues[0],arTmpValues[2]]);
                }
                break;
            case 3:
                var matches = /^([0]?[1-9]|1[012])\-([0]?[1-9]|[12][0-9]|3[01])\-[0-9]{4}/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split("-");
                    return ([arTmpValues[1],arTmpValues[0],arTmpValues[2]]);
                }
                break;
            case 4:
                var matches = /^[0-9]{4}\.([0]?[1-9]|1[012])\.([0]?[1-9]|[12][0-9]|3[01])/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split(".");
                    return ([arTmpValues[2],arTmpValues[1],arTmpValues[0]]);
                }
                break;
            case 5:
                var matches = /^[0-9]{4}\/([0]?[1-9]|1[012])\/([0]?[1-9]|[12][0-9]|3[01])/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split("/");
                    return ([arTmpValues[2],arTmpValues[1],arTmpValues[0]]);
                }
                break;
            case 6:
                var matches = /^[0-9]{4}\-([0]?[1-9]|1[012])\-([0]?[1-9]|[12][0-9]|3[01])/.exec(date);
                if (matches == null) return ([]);
                else {
                    arTmpValues = date.split("-");
                    return ([arTmpValues[2],arTmpValues[1],arTmpValues[0]]);
                }
                break;
        }
    }



  9. Add a function to validate the field values and call the changeFormat function, returns the formatted date to display a message based on its value.
    // Function to check and change date format functions
    function changeDateFormat(){
        if(isBlank(z_date)){
            message('E: Please enter Date');
            goto SCRIPT_END;
        }
        if(isBlank(z_currdtformat)){
            message('E: Please enter Current Format');
            goto SCRIPT_END;
        }
        if(isBlank(z_newdtformat)){
            message('E: Please enter New Format');
            goto SCRIPT_END;
        }

        z_nwdtformat = changeFormat(z_date,z_currdtformat,z_newdtformat);
        if(z_nwdtformat.indexOf('Invalid') > -1){
            message('E: Invalid format - Date and Current Format should match');
            goto SCRIPT_END;
        } else{
            set('V[z_date]','&V[z_nwdtformat]');
            message('S: Changed format successfully');
        }
        enter('?');

        SCRIPT_END:;
    }



  10. Add a function to change the entered date format and return the required date format.
    /**************************************************************************************
    Change date from one format to another formats:
        // 1. DD.MM.YYYY
        // 2. MM/DD/YYYY
        // 3. MM-DD-YYYY
        // 4. YYYY.MM.DD
        // 5. YYYY/MM/DD
        // 6. YYYY-MM-DD
    ****************************************************************************************/
    function changeFormat(date,dformat,outformat){
         arDateValues = check_date_format(date,dformat);
        if (arDateValues.length == 0){
            return ("E: Invalid Format");
        }
        day = arDateValues[0];
        month = arDateValues[1];
        year = arDateValues[2];
        date1 = "";
        switch (outformat){
                case '1':
                    date1 = day + "." + month + "." + year;
                    break;
                case '2':
                    date1 = month + "/" + day + "/" + year;
                    break;
                case '3':
                    date1 = month + "-" + day + "-" + year;
                    break;
                case '4':
                    date1 = year + "." + month + "." + day;
                    break;
                case '5':
                    date1 = year + "/" + month + "/" + day;
                    break;
                case '6':
                    date1 = year + "-" + month + "-" + day;
                    break;
            }
            return (date1);
    }

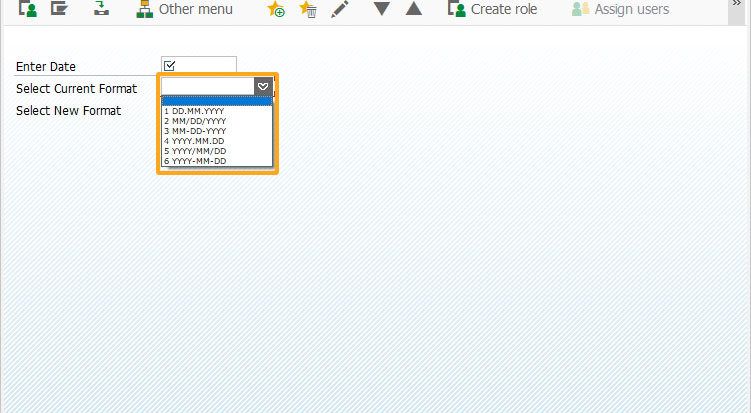

  11. Enter the date in the inputfield as shown below:


  12. Select the entered date format from the Select Current Format dropdownlist.


  13. Select the preferred date format from the Select New Format dropdownlist.


  14. Click Change Date to New Format pushbutton to display the formatted Date in the Enter Date inputfield.
