14.02 Retrieve metadata information of a website

Prerequisites

• Products: Liquid UI WS, Liquid UI Server or Local DLL, Client Software
• Commands: wsCurl, textbox(), pushbutton()
• File: wscurl.dll

Purpose

You will learn how to execute a simple URL and retrieve metadata information using wsCurl. To demonstrate this, we’ll walk you through the following steps:

• Delete unnecessary elements on the SAP screen using the del command
• Add a pushbutton to execute the process on click
• Add a text field
• Add a text box to display the retrieved metadata
• Add a function to retrieve the metadata of the given website

User Interface

Create the file SAPLSMTR_NAVIGATION.E0100.sjs inside your script folder for customizing the SAP Easy Access screen.
//Now, let's start adding the script to the above file and save it.

Customization

1. Logon to SAP, and delete the image container on it using the del command, as shown below:


   // Deletes an image container on the SAP Easy Access screen.
   del("X[IMAGE_CONTAINER]");

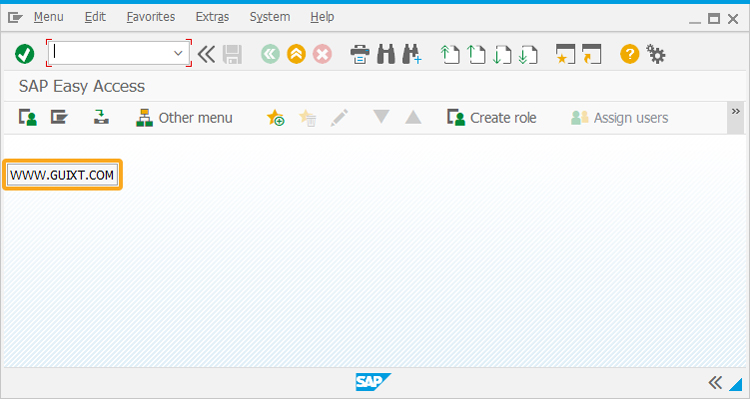

2. Add a pushbutton with the label WWW.GUIXT.COM to execute the process simple_http that retrieves the metadata information using wsCurl on click.


   pushbutton([1,0], 'WWW.GUIXT.COM', '?',{"size":[1,15], "process":simple_http});
   text([3,1], "http Details below - ");
   textbox([4,1], [24, 100],{"name":"z_text"});

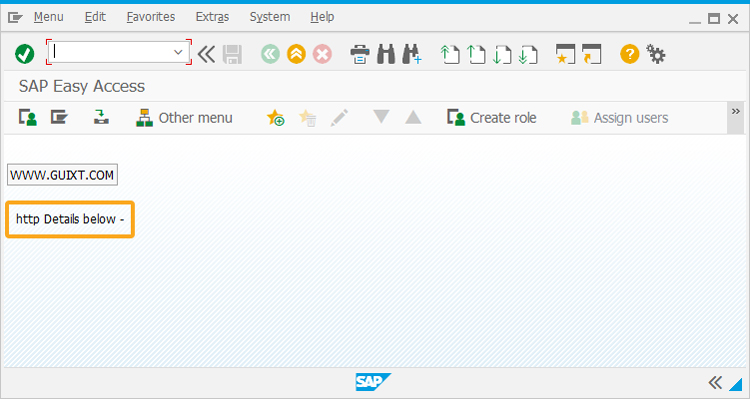

3. Add a text field with the label http Details below, as shown in the image below.


   // Creates a text field with the label http Details below
   text([3,1], "http Details below - ");

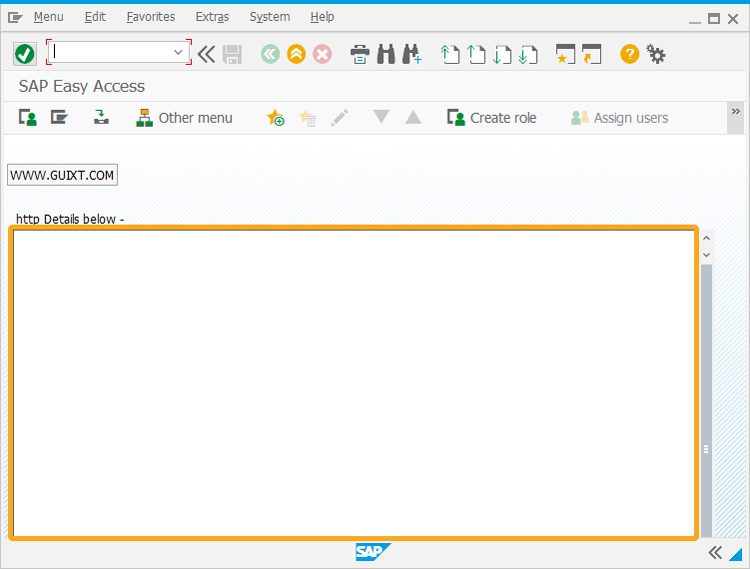

4. Add a text field with the label http Details below, as shown in the image below.


   // Creates a text box to display the output, as shown in the image below
   textbox([4,1], [24, 100],{"name":"z_text"});






5. Add the wscurl file using the load command in this script to use WS services to translate the text entered in the input field.


   // includes a file in this script file
   load('wscurl');


6. Now, add the following Liquid UI script to the above file and save it.


   // Function to execute a simple URL and retrieve information
   function simple_http() {
       var wsCurl = new Curl();

       /* Build the URL to make a call*/
       var completeURL = "http://www.guixt.com/";

       /* Note this use is for calls made to www.guixt.com which returns us the JSON object in string*/
       wsCurl.setopt(Curl.CURLOPT_URL, completeURL);

       /* You can check the return code to avoid error data string which can be found from "wsCurl.error"
        * return value 0 means success*/
       var response = wsCurl.exec();
       var error = wsCurl.error;

       z_tmp = response.substring(0,2000);
       copytext({"fromstring":"z_tmp", "totext":"z_text"});

       /* Close the http connection for the URL fetch*/
       wsCurl.close();

       /* Remove any reference for Garbage Collection*/
       wsCurl= NULL;
   }




   SAP Process

   1. Refresh the SAP screen and click on the WWW.GUIXT.COM pushbutton. Then, the function simple_http is executed and the metadata of the given website will be displayed in the text box created, as shown in the image below.
