12.12 Mark SAP entry fields with icons


Prerequisites


Purpose

To mark SAP entry fields with a small red cross icon and prompt for user input or highlight the fields.

In this scenario, you will learn how to assign a symbol for an SAP input field to show it as a mandatory field. This can be achieved by calling the "cmdMark" function and passing parameters. Follow the steps for customization

  1. Add a function to trim blank spaces at the end of the string
  2. Add a function to mark entry fields with a small red cross

User Interface

//Create this file inside your script folder for customizing the Create Sales: Initial Screen SAPMV45A.E0101.sjs
//Now, let's start adding the Liquid UI script to the above file and save it.

Customization

  1. Add a function to trim blank spaces at the end of the string.

    // Function to trim blank spaces at the end of the string
    String.prototype.trim = function(){return this.replace(/^\s+|\s+$/g,'');}

    function getString(strInput) {
       return (typeof(strInput) == 'undefined') ? "" : strInput.toString().trim();
    }

    function isBlank(strInput) {
       var strVal = getString(strInput);
       var blank = strVal == "";
       return blank;
    }

  2. Add a function to mark entry fields with a small red cross

    // Function to mark entry fields with a small red cross
    function cmdMark(fldName,nOffset,strIcon) {
       if(isBlank(nOffset) || nOffset < 2) {
          nOffset = 3;
       }
       if(isBlank(strIcon)) {
          strIcon = '02';
       }

       var nRow = <'F['+fldName+']'>.row;
       var nCol = <'F['+fldName+']'>.column;
       text([nRow,nCol-nOffset],'@'+strIcon+'@');
    }
    // Liquid UI Interface
    cmdMark("VBAK-AUART");      // Order Type



SAP Process

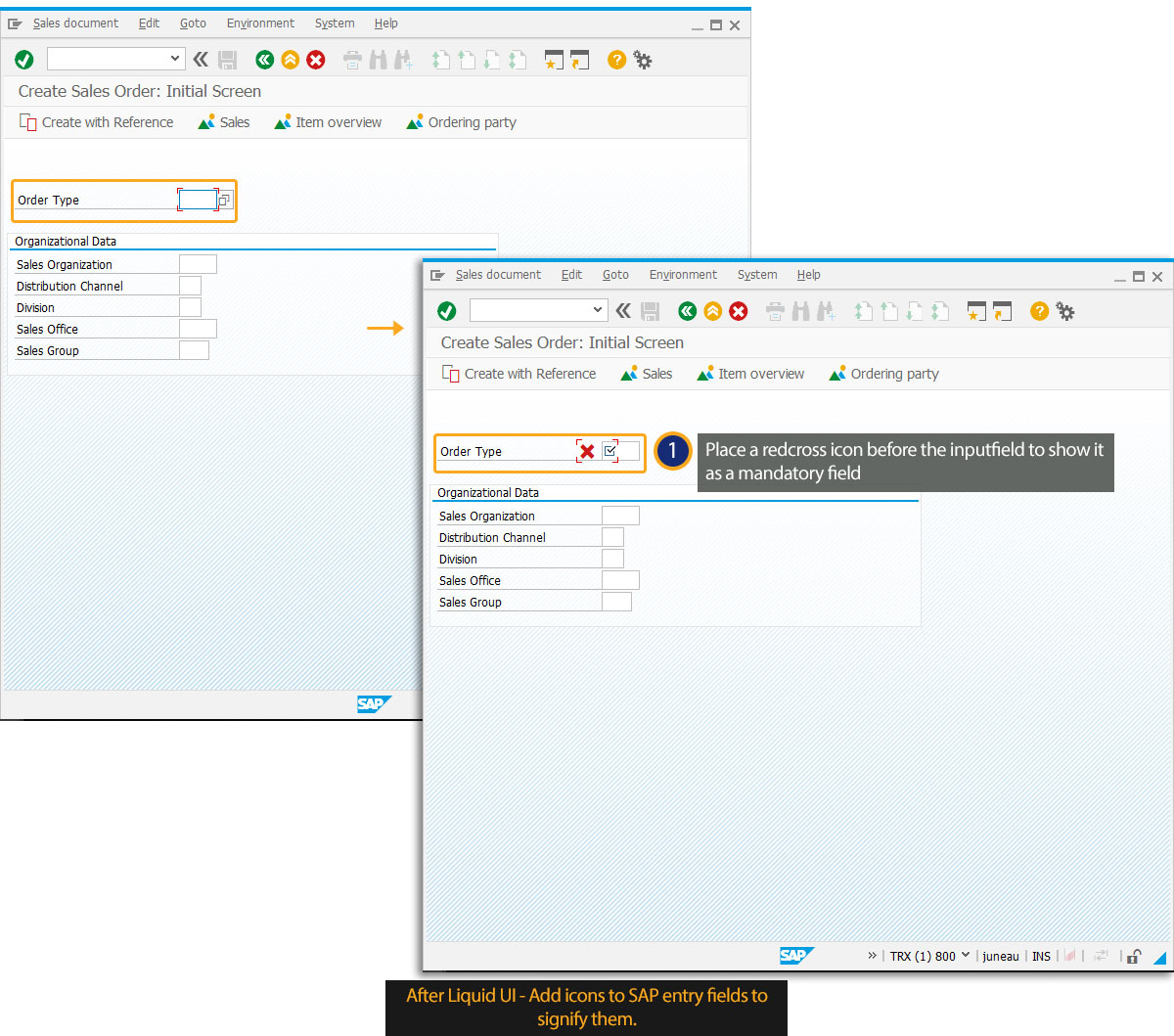

  1. Logon to SAP and navigate to the Create Sales Order: Initial screen (VA01). Here, on the VA01 screen, you can see a small red cross icon displayed in front of the Order input field. This icon indicates that it is a mandatory field to be filled before further process. The input field with the icon is shown in the image below:



    Note: You can change the symbol as per your requirement by changing the strIcon value.
