Liquid UI - Documentation - 19.14 Increment counter using appendfile()

19.14 Increment counter using appendfile()


Prerequisites

Purpose

This article guides you through creating a file in SAP and incrementing the counter using the appendfile command. To demonstrate this with a scenario, we’ll guide you through the following steps.

  1. Delete the image container on the SAP Easy Access screen
  2. Add a push button to add content to a file
  3. Add a function to append values to a file
  4. Check the file for new content


User Interface

//Create this file inside your script folder for customizing the SAP Easy Access Screen, SAPLSMTR_NAVIGATION.E0100.sjs

//Now, let's add the Liquid UI script to the above file and save it.


Customization

  1. Delete the image container on the SAP Easy Access screen using del().

    //Deletes the Image container on the screen
    del("X[IMAGE_CONTAINER]");


  2. Add a toolbar push button Execute to initiate the testfunction process:

    // Creates a toolbar push button labeled Execute
    pushbutton([TOOLBAR],'Execute','?',{'process':testFunction});



  3. Add a function to declare a variable and invoke another function, passing the strFileName parameter.

    // Function to invoke another function
    function testFunction() {
        strFileName = 'counter.txt';
        appendToCounterFile(strFileName);
    }


  4. Add a function to remove blank spaces.

    // Function to remove blank spaces
    String.prototype.trim = function() {
        return this.replace(/^\s+|\s+$/g,"");
    }


  5. Add a function to validate blank spaces in the string.

    // Function to validate whether the variable holds a blank space or null value
    function isBlank(jvar){
        if(typeof jvar == undefined || jvar == null || jvar == "" || jvar == void 0)
            return true;
        else
            return jvar.toString().trim() == '';
    }

  6. Add a function to create a text file named counter.txt, increment the counter value, and append it to the file.


    // Function that takes a file as a parameter and appends data to it
    function appendToCounterFile(fileName) {
    	var lastCounter = 0;
        var z_counter = '';
    	var strBlank = '';
        openfile(fileName,{"delimiter":","});
        NEXT_LINE_READ:;
        readfile(fileName,{"z_counter":true});
        if(isBlank(z_counter)) {
    		 goto END_OF_FILE;
    		 }
    		 lastCounter = parseInt(z_counter);
    		 var z_counter = '';
    		 goto NEXT_LINE_READ;
    		 END_OF_FILE:;
    		 closefile(fileName);
    		 openfile(fileName,{"append":true, "delimiter":","});
    		 lastCounter++;
    		 appendfile(fileName,{"lastCounter":true});
    		 closefile(fileName);
    		 }



SAP Process

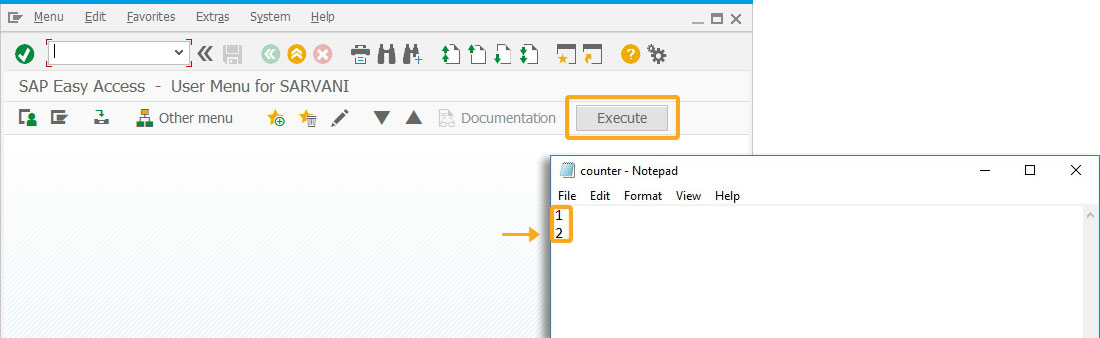

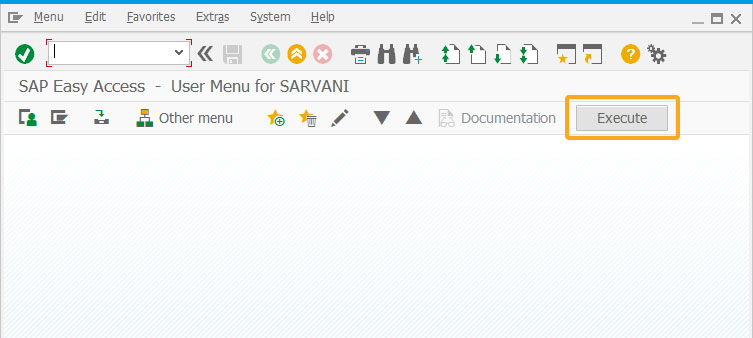

  1. Refresh the SAP Easy Access screen and click the Execute push button to increment the last value and append it to the file.
