23.10 Radiobutton using .value property

Prerequisites

• Products: Liquid UI WS, Liquid UI Server or Local DLL, Client Software
• Commands: pushbutton(), inputfield(), radiobutton(), del(), onscreen(), onUIEvents(), message()

Purpose

Learn how to pass the radio button value to other elements on the same screen using radiobuttonname.value property in Liquid UI. To illustrate this process, we will use the SAP Easy Access screen as an example and navigate you through the following steps:

1. Delete the image container on the SAP Easy Access screen
2. Add group boxes where you can organize various elements
3. Add radio buttons where the user can select the required value
4. Add input fields where the user can enter the details
5. Add push buttons to execute the function
6. Change screen title
7. Add a function to check the radio button value.

User Interface

//Create the file SAPLSMTR_NAVIGATION.E0100.sjs inside your scripts folder for customizing the SAP Easy Access screen
//Now, let's add the Liquid UI script to the above file and save it

Customization

1. Delete the image container on the SAP Easy Access screen using the del() command.



   // Deletes the image container on the SAP Easy Access screen
   del("X[IMAGE_CONTAINER]");





2. Add three group boxes labeled Industry sector, Org. Levels and Material Type to organize various elements.



   //Creates group boxes to organize various elements
   box([1,0], [5,27], "Industry sector");
   box([1,30], [5,65], "Org. Levels");
   box([6,0], [11,47], "Material Type");





3. Add eight radio buttons to enable the user to select the required value.



   // Creates radio buttons to select the value
   radiobutton([9,0], "Semi-Finished Products",{"name":"z_radio","value":"Semi-Finished","size":10});
   radiobutton([7,23], "Non-valuated material",{"name":"z_nonval","value":"Non-valuated material", "size":10});
   radiobutton([8,0], "Spare Parts", {"name":"z_spare","value":"Spare parts","size":[2,15]});
   radiobutton([4,0], "Oil Industry",{"name":"z_oil","value":"Oil Industry","size":[2,15]});
   radiobutton([2,0], "ConocoPhilips",{"name":"z_coco","value":"ConocoPhilips", "size":[2,15]});
   radiobutton([8,23], "Finished Products",{"name":"z_finished", "value":"Finished products"});
   radiobutton([7,0], "Service",{"name":"z_service","size":[2,15], "value":"Service"});
   radiobutton([3,0], "Mining Industry",{"name":"z_mining","size":[2,15],"value":"MN"});





4. Add three input fields labeled Plant, SLoc, and Sales Org to enter Org.Levels details.



   //Creates input fields to enter the Org.Levels details
   inputfield( [2,32], "Plant", [2,44],{"name":"z_plant","size":10});
   inputfield( [3,32], "SLoc", [3,44],{"name":"z_loc", "size":7});
   inputfield( [4,32], "Sales Org",[4,44],{"name":"z_sales","size":10});





5. Add two push buttons labeled Create Material and Clear values, that on click execute the z_proc function.



   //Creates a pushbutton Create Material to run z_proc on click
   pushbutton([13,5], "Create Material  ",{"process":z_proc, "name":"z_CreateMat","size":[2,16]});
   //Creates a pushbutton to clear values in  all the fields
   pushbutton([13,33], "Clear values    ",{"name":"z_clear","size":[2,15]});

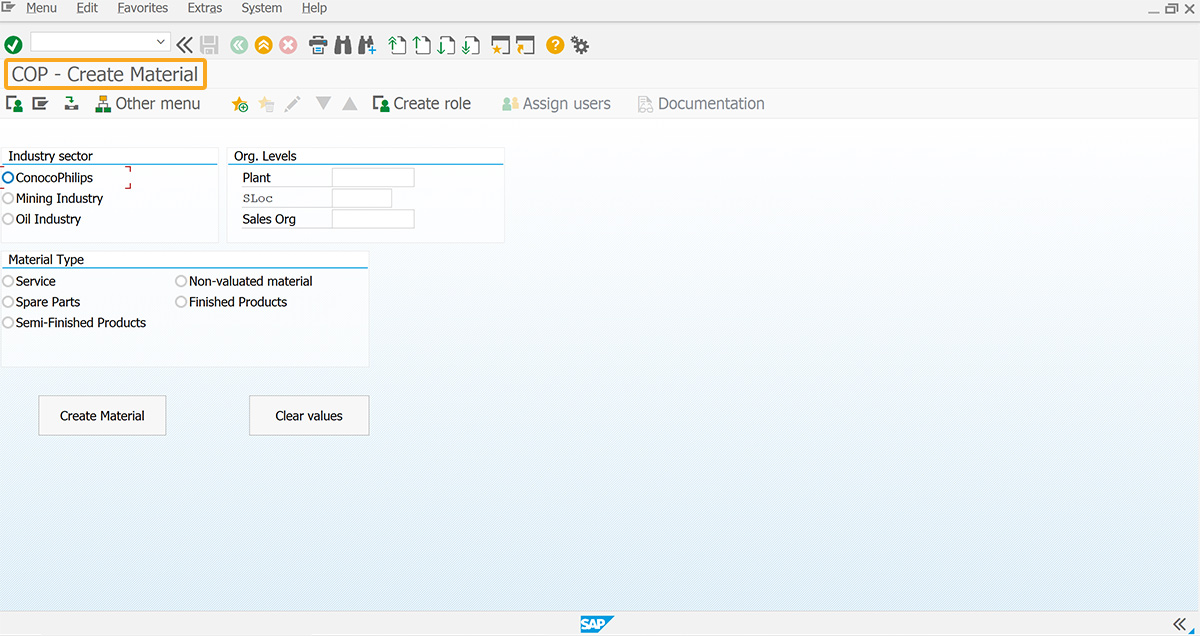

6. Change screen title to COP - Create Material.



   // Changes the title of the screen
   title("COP - Create Material");





7. Display the radio button value using the .value property. You can see the z_radio.value and z_radio values of the Semi-finished products radio button before executing the function. Click enter to execute the z_proc function defined in the script file.



   // Displays radio button value on the same screen
   println("|||||||\nSCREEN z_radio.value:" + z_radio.value +"\n|||||||\nSCREEN z_radio:" + z_radio+"\n||||||");
   onUIEvents["enter"] = z_proc;


8. Add the z_proc function to observe and display z_radio.value and z_radio values when accessed on the same screen and a different screen.



   //Function to display z_radio.value and z_radio values during automation process and after performing navigation to another screen
   function z_proc(){
   	// radiobutton value during automation process
   	println("|||||||\nPREFC z_radio.value:" + z_radio.value +"\n|||||||\nPREFC z_radio:" + z_radio+"\n||||||");
   	message("z_proc PREFC hit!!");
   	onscreen '*'
   		message("z_proc ONSCREEN hit!!");
   		//radiobutton value when accessed on the other screen
   	println("|||||||\nONSCREEN z_radio.value:" + z_radio.value +"\n|||||||");
   	println("|||||||\nONSCREEN z_radio:" + z_radio +"\n|||||||");
   		enter();
   }


SAP Process

1. Refresh the SAP screen, select the Semi-Finished Products radio button, and perform Enter to display the z_radio.value and z_radio values on the same screen, during automation of the screen and when accessed on a different screen, as shown below.





Example 2: Accessing radio button value in the Create Activity screen during Automation

Purpose

Learn how to pass radio button values to other elements on the same screen and also on different screens (Create Activity screen) using radiobuttonname.value property in Liquid UI. To demonstrate this process we are considering the SAP Easy Access screen as an example and we'll guide you through the following steps:

1. Delete the image container on the SAP Easy Access screen
2. Add three radio buttons to access their values
3. Add a function to display radio button values

User Interface

//Create the file SAPLSMTR_NAVIGATION.E0100.sjs inside your scripts folder for customizing the SAP Easy Access screen
//Now, let's add the Liquid UI script to the above file and save it.

Customization

1. Delete the image container on the SAP Easy Access screen using the del command.



   // Deletes the image container on the SAP Easy Access screen
   del("X[IMAGE_CONTAINER]");





2. Add three radio buttons namely Hour, Day, and Minutes to select the required as per your requirement, as shown below:


   //Creates three radiobuttons indicating sizes and label names
   radiobutton([3,16],"Hour",{"name":"z_act_unit","value":"H"});
   radiobutton([3,28],"Day",{"name":"z_act_unit","value":"DAY"});
   radiobutton([3,40],"Minutes",{"name":"z_act_unit","value":"EA"});




3. On performing enter, function process_enter will be executed.


   // OnUIEvents command executes process_enter function when user performs enter
   onUIEvents["enter"] = process_enter;



4. Add a function to display activity unit value on the same screen and a different screen after performing screen automation.



   //Adds process_enter function to display radiobutton value on the same screen and on different screen (Create Activity screen)
   function process_enter()
    {
    println("****************activity unit Value (Outside) = " + z_act_unit.value);
    enter("/nKL01");
    // println("****************Allocation Cost Element Value (Outside) = " + z_cost_elem.value);
     onscreen "SAPLKMA6.0200"
     println("-----------------------------Activity unit Value (z_act_unit) = " + z_act_unit);
     println("-----------------------------Activity unit Value(z_act_unit.value) = " + z_act_unit.value);
    enter();
    }




SAP Process

1. Refresh the SAP screen, and select any radio button to pass its value to the Create Activity screen. You will see different values for the radio button when accessed on the same screen and a different screen, as shown below on the console window.
